Archibus Smart Client Extension for Revit

Select Levels, Views, and Assets

To select levels, views, and assets to display in BIM Explorer, open the second content configuration menu:


A Revit model typically contains multiple levels, several views, and a catalog of assets:

  • Revit levels equate to Archibus floors.
  • You can create different views of the building model, such as plan views, elevation views, and section views.
  • Assets refer to pieces of equipment, furniture, and other identifiable items in the building.

Images below illustrate Tree View when you select:

  • Levels
  • Levels, Views
  • Levels, Assets

Show Levels Only

To list model levels or floors in the Tree View, select Levels in the drop-down menu:


Show Levels and Views

To show levels as well as views, select Levels, Views in the drop-down menu:

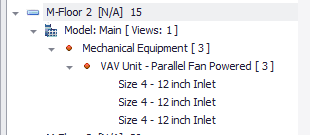

Show Levels and Assets

To show levels and assets in Tree View, select Levels, Assets in the drop-down menu:


See also

Organize Data in BIM Explorer
