Group Model Data
Archibus Smart Client Extension for Revit
Group Model Data
To group model data in Tree View by Revit Categories, or by Archibus Assets, open the third content configuration menu:
Use the Content tab in Data Display Options to select which Asset Types, and which Revit Categories, you want to display:
Group by Revit Categories
When you select Group by Revit Categories in the content configuration menu, Tree View groups data according to categories you check in the Content tab above. Mechanical Equipment in Tree View below illustrates:
Group by Archibus Assets

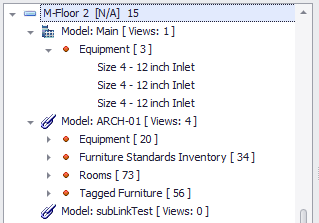

When you select Group by Archibus Assets in the content configuration menu, Tree View groups data according to Asset Types you check in the Content tab above. Refer to asset groups under Model: ARCH-01 in Tree View below:
See also
