Sample views

The following Solutions Template views demonstrate markers:

• Basic drawing control
  • http://localhost:8080/archibus/schema/ab-products/solutions/programming/svg/marker/ab-ex-svg-dwg-marker.axvw
• Advanced drawing control
  • http://localhost:8080/archibus/schema/ab-products/solutions/programming/drawing/ab-ex-dwg-control-marker.axvw

Initialization and access

Similar to other drawing control add-ons, you use the drawing control's addOnsConfig object to enable the marker control:

// enable the marker and cluster add-ons
parameters['addOnsConfig'] = {
'Marker': {'divId': 'drawingDiv'}
};

// load drawing
this.drawingControl = new Ab.svg.DrawingControl("drawingDiv", "drawingPanel", parameters);

To access the marker add-on, use the drawing control's getAddOn() API:

this.markerControl = this.drawingControl.getAddOn('Marker');

Enable or disable markers

Under certain conditions, in Web Central or in the Mobile app, you want the ability to enable or disable drawing markers. To do so, marker control contains the following API:

this.markerControl.enable(enabled);

where (enabled) is true or false.

In the marker add-on config object, ensure you specify the layer name for markers:

parameters['addOnsConfig'] = { Marker: { divId: 'drawingDiv', layerName : this.layerName }, … }

Placing a marker

After selecting a marker from the marker legend, call this API, which performs the following sequence of events:

1. On desktop browsers, change the mouse cursor to a cross.
2. Turn on the sensor for the floorplan to capture the next click or tap.
3. When the user clicks or taps on a location in the floorplan, determine the position.
4. Call addMarker() to insert the selected symbol onto the drawing.
5. Turn off the sensor, change the mouse cursor back, and return to regular mode.
6. Issue callback handler.

For example:

markerControl.placeMarker(svg, parameters);

where:

• svg is the targeted svg floorplan
• parameters is the marker object. (See the" Marker Object Properties" section at the end of this topic.)

Adding a marker

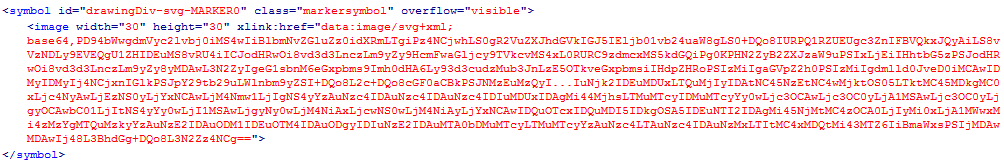

Creates and inserts a marker symbol onto floorplan, attaching any event handlers and labels.

For example:

var image = markerControl.addMarker(parameters);

where:

• parameters is the marker object. (See the" Marker Object Properties" section at the end of this topic.)
• returns <image> element

Adding or setting a label to a marker

addMarker() automatically calls this method, so ordinarily, you should not need to use this API.

For example:

setLabel(parameters);

where parameters is the marker object. (See the" Marker Object Properties" section at the end of this topic.)

Moving a marker

addMarker() automatically calls this method, so ordinarily, you should not need to use this API.

Example:

move(parameters);

where parameters is the marker object. (See the" Marker Object Properties" section at the end of this topic.)

Removing a marker

removeMarker() deletes a marker and its label from the floor plan. This method removes the markers from the floor plan. It does not make changes to the database.

Example:

removeMarker(id);

where id is the id of the marker to be deleted.

To remove all markers from a given layer on the floor plan, use:

markerControl.removeMarkers(layerName);

where layerName is the name of the maker layer (such as eq-assets ). This method removes the markers from the floor plan. It does not make changes to the database. This is handy because it is often faster than fetching and reloading the drawing.

On cancel, fly marker back to original position

After moving a symbol, you can specify a callback function. In this callback function, the application level has full control over what to do once the user has finished moving a symbol from one position to another. For example, you might choose to save the new position right away or to first seek confirmation. If the user chooses to seek confirmation and chooses Cancel, allow the symbol to fly back to original position.

Example:

returnToOriginalPosition(node, toX, toY, toRotation)

where:

• node is marker to be removed
• toX is the x position to return to
• toY is the y position to return to
• toRotation is the angle of rotation to return to

Locating markers

Use the Drawing Control’s findAsset() method to locate markers. Note that the marker structure will be different, but you just need adjust the .css styling accordingly. For example, traditionally, the default css class for highlighting a room is:

// to highlight a room
.zoomed-asset-default {
fill: yellow;
opacity: 0.8;
stroke: #000000;
}

Because markers can be read-only images, to highlight a marker, you need to apply the style to the . splotch instead, such as:

// to highlight a marker
.zoomed-asset-default .splotch{
stroke: blue;
stroke-dasharray: 5, 2, 5, 1;
stroke-width: 5px;
}

You can keep both in the .css file. But when you pass in the parameter in findAssets , use zoomed-asset-default .

Patching published symbols

Patch any <use> elements in the floor plan for the specified layer. Mainly used for searching a symbol. Storing the published symbols is not supported.

Example:

patchAssets('eq-assets');

where:

- name of the layer table is eq-assets

Note on Delete icon

Typically, for event handlers, the core control attaches a listener to a method passed in by the application code. The application code then takes on full responsibility of what happens next. Here, the ‘Delete’ action contains some reusable components, some parts that are handled by application code, and some parts that are handled by core code.

The following sequence outlines the workflow of the ‘Delete’ icon and the relationship between beforeDeleteHandler vs. deleteHandler :

1. Optional. When the user clicks the "Delete" icon, application code may want the ability to do something beforehand (such as check whether or not the symbol can be deleted). If so, application code can use beforeDeleteHandler() to specify a function.
2. Optional.
   • If the beforeDeleteHandler() function indicates that symbol should not be deleted, return. Core code does nothing else. Application code will provide feedback to user.
   • If beforeDeleteHandler() indicates that symbol can be deleted, proceed with Item #3.
3. Show confirmation, asking if user want to proceed with delete, which has Yes or No option.
   • If Yes, perform actual delete:
     • Application code uses delete() handler to do something, such as attempt to delete item from the database via a workflow rule.
     • Delete() handler returns a boolean to indicate success or failure.
     • Based on this boolean, core code decides whether or not to delete a symbol and its label from DOM.
   • If No, core code does nothing. Symbol remains on screen.

To summarize, basically, use beforeDeleteHandler if you need to do something before bringing up the delete confirmation and subsequent deleteHandler function. In the beforeDeleteHandler function:

• return true if you want to indicate that the symbol can be deleted and want to proceed with the deleteHandler .
• return false if you want to indicate the symbol should not be deleted.
