Prerequisites

Web Central (v2024.02+) is deployed on a Tomcat service and configured in a virtual host with HTTPS in Apache httpd.conf. As an example we’ll assume the URL is https://outlookdemo.example.com/archibus/.

Note: Using a self-signed certificate for HTTPS is not supported. The certificate must be signed by a known Certificate Authority trusted by end users.

To ensure the Outlook web add-in can access the Web Central REST API, Web Central must be configured as described in Integrate Outlook web add-in with Azure AD for SSO | Archibus OIDC configuration .

Web Central must be configured with Exchange Online integration using OAuth2 and room mailbox calendar monitoring.

Note: For rooms to be showed on the Add-in you need to add the room mailboxes for all rooms to be reserved. See below pages on the System Help showing how to use and configure the room mailboxes.

• Set Up OAuth2 Authentication for Archibus Extension for Microsoft Exchange

• Exchange: Monitoring Room Mailboxes

The Create room mailboxes in Exchange article describes how to create and configure the room mailboxes in Exchange.

Note: Calendar Processing for the rooms must be set to AutoUpdate instead of AutoAccept.

Combining Web Central SSO and OIDC

The Web Central REST API must be accessible with OIDC authentication. If Web Central is configured for SSO with a reverse proxy, the reverse proxy should allow requests to /archibus/api/ to pass through without additional authentication.

For example in Apache, add the following exception to the virtual host definition:

<Location /archibus/api>

AuthType None

Require all granted

</Location>

Server runtime requirements

There are no specific runtime requirements for hosting the compiled add-in. The server doesn’t need npm and/or NodeJS - those are only required at build time.

The Outlook web add-in package contains only static files (HTML, JavaScript, images …). Those files can be hosted directly on Apache.

Deployment instructions

To deploy the add-in files to /outlookaddin directly on your Apache proxy server, follow these steps:

1. On the proxy server, create a folder outlookaddin in the document root folder for your specific virtual host.

   1. Example: your virtual host name is <yourServerName>.<yourDomain> .

   2. Create the directory structure: /var/www/html/<yourServerName>.<yourDomain>/outlookaddin .

   3. Where /var/www/html/<yourServerName>.<yourDomain> is the document root folder for the virtual host.

2. Download the Archibus Outlook web add-in package for the desired release from Allbound release downloads page (ex. “Archibus | V.2024.02 Download Links” represents the release downloads page for the Archibus V.2024.02 release). Copy the downloaded package to the outlookaddin folder in your Archibus web application location and extract its content using the unzip command The result should look like this:

3. Define the virtual host in Apache httpd.conf.

Below is an example fragment deploying to https://outlookdemo.example.com. This example:

• Has Apache proxy and Web Central running on the same server.

• Sets the virtual host name.

• Uses ProxyPass to forward requests for Web Central to Tomcat on port 8080.

• Sets the document root for serving the outlook web add-in files.

<VirtualHost *:80>

ServerName outlookdemo.example.com

ProxyPreserveHost On

ProxyPass /archibus/ http://127.0.0.1:8080/archibus/

ProxyPassReverse /archibus/ http://127.0.0.1:8080/archibus/

DocumentRoot "/var/www/html/outlookdemo"

</VirtualHost>

The following fragment is an example configuration for a production deployment. This example:

• Has Apache proxy and Web Central running on separate servers.

• Sets the virtual host name.

• Redirects HTTP requests to HTTPS except for ELB-HealthChecker requests.

• Redirects requests without path to /archibus.

• Sets security and cache control headers.

• Uses ProxyPass to forward requests for Web Central to the backend server.

• Sets the document root for serving the outlook web add-in files.

• Uses Shibboleth SP to require SAML SSO except for the REST API and the cordova version.

• Disables caching for some html files used by Archibus Workplace and Mobile Client to avoid issues with SAML sessions.

ServerName https://<yourServerName>.<yourDomain>

LoadModule authn_core_module modules/mod_authn_core.so

LoadModule mod_shib /usr/lib64/shibboleth/mod_shib_24.so

ShibCompatValidUser Off

<VirtualHost *:80>

ServerName https://<yourServerName>.<yourDomain>

LoadModule rewrite_module modules/mod_rewrite.so

RewriteEngine On

RewriteCond %{HTTP:X-Forwarded-Proto} !https

RewriteCond %{HTTP_USER_AGENT} !ELB-HealthChecker

RewriteRule (.*) https://%{HTTP_HOST}%{REQUEST_URI}

<Proxy *>

Require all granted

</Proxy>

RedirectMatch ^/$ /archibus

Header set Strict-Transport-Security "max-age=63072000; includeSubDomains"

Header set X-Content-Type-Options "nosniff"

Header set Referrer-Policy "no-referrer"

Header set Cache-Control "no-cache, no-store, must-revalidate"

Header set X-XSS-Protection 0

ProxyPreserveHost On

ProxyPass /Shibboleth.sso !

ProxyPass /archibus <http://<yourServerIP>:<portNumber>/archibus retry=0

ProxyPassReverse /archibus <http://<yourServerIP>:<portNumber>/archibus

DocumentRoot "/var/www/html/<yourServerName>.<yourDomain>"

#Require Shibboleth Authentication

<Location /archibus>

Satisfy all

Order Deny,Allow

Deny from all

AuthType shibboleth

ShibUseHeaders On

ShibRequestSetting requireSession 1

Require shib-session

Allow from all

</Location>

# Ensures handler will be accessible.

<Location /Shibboleth.sso>

Satisfy Any

Allow from all

</Location>

<Location /archibus/cxf/configs/cordovaversion>

AuthType None

Require all granted

</Location>

# exception for shibboleth.

# Allow requests to /archibus/api/ to pass through without shibboleth authentication

<Location /archibus/api>

AuthType None

Require all granted

</Location>

# force to load workplace after restarting browser by setting cache to none.

<Location /archibus/schema/ab-products/essential/workplace/index.html>

Header always set Cache-Control "max-age=0"

</Location>

<Location /archibus/workplace/index.html>

Header always set Cache-Control "max-age=0"

</Location>

<Location /archibus/schema/ab-products/common/mobile/*/AppLauncher/index.html>

Header always set Cache-Control "max-age=0"

</Location>

</VirtualHost>

Note: HTTPS is required, but SSL setup is outside the scope of this article. It can be configured via your public provider (e.g. Cloudflare), or via a certificate installed directly on your Apache server.

Validation

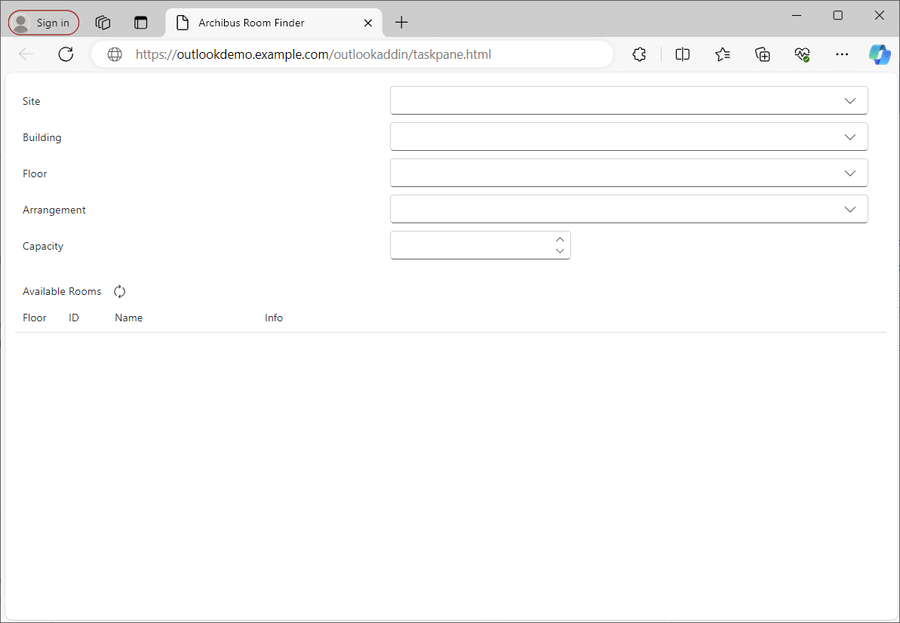

To confirm the add-in was deployed successfully, you can try loading it directly using a web browser.

1. Open a new browser window.

2. Navigate to https://<yourhostname>/<yourdeploypath>/taskpane.html

Example: https://outlookdemo.example.com/outlookaddin/taskpane.html

3. Check the add-in loads the default layout but without data.

4. If you open the browser console, you’ll see a Warning: Office.js loaded outside of Office client followed by additional errors. This is normal if you open the URL with a regular browser.
